Lysine |

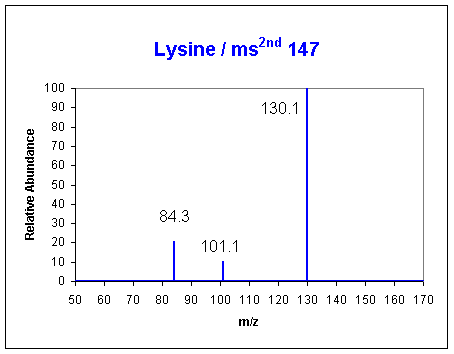

| Experimental: Lysine was infused into a Xxxxx ion trap mass spectrometer at 10 µl/min in 30% methanol, 0.1% acetic acid. Collision energy was set to 20 for the fragmentation. MS2nd data was collected for one minute and then averaged. In the previous spectrum the peak at m/z 147, the pseudo molecular ion for lysine, was selected for fragmentation. The peak at m/z 130.1 in this spectrum was selected for ms3rd fragmentation, click on the 130 peak to fragment. |
|
| Note: Not all peaks were selected for further fragmentation, as you pass your mouse cursor over the peak a selection tool will appear indicating that you can fragment this peak further. The structure of all fragments can be viewed by placing the mouse over any peak and viewing the region highlighted on the structure to the right (this highlight feature is not active yet). | |
|
